Josh's - 04 FXT

41178 Views 414 Replies 38 Participants Last post by No_Trunk, Mar 6, 2019

Joshua

Discussion Starter · Jun 13, 2012 (Edited)

So my journey is two fold. First is trying to create my ideal Daily Driver. My L had become a very fun but uncomfortable car, after so many years on coilovers there is only so much one can take (or maybe its old age ha ha)

Second is to learn as much as I can about turbo motors and apply that knowledge towards the L. I have ended up learning a LOT more than I had expected.

MODZ

Engine
-Complete overhaul
-VF48
-2011 STI TMIC
-Samco turbo/intercooler hoses
-KSTech TGV Deletes
-Mishimoto Aluminum Radiator
-CNT catless DP
-Prodrive Ovaltip axle back
-Grimspeed Uppipe
-GrpN motor mounts
-dw200 fuel pump
-Tomei Inlet
-Tomei Type S FPR
-Bruce Tune

Interior/Exterior
-Wideband & Boost gauge in custom ashtray area plate
-20% Tint all around
-SG dash hood
-passport 8500
-Rola Vortex Roof Basket
-Primitive Skid Plate

Suspension/Steering/trans
-STI Struts
-RCE Black Springs
-Paranoid fab 3/8" saggy but spacers
-STI Rear Sway Bar
-Cusco Endlinks
-JDM V7 Aluminum Control Arms
-Superpro Steering rack bushings
-rallitek auto trans bushing
-B&M Supercooler, trans cooler

Brakes
-Hawk HPS pads all around

See less See more

1 - 20 of 415 Posts

Joshua

Discussion Starter · #2 · Jun 13, 2012 (Edited)

4

Some pictures

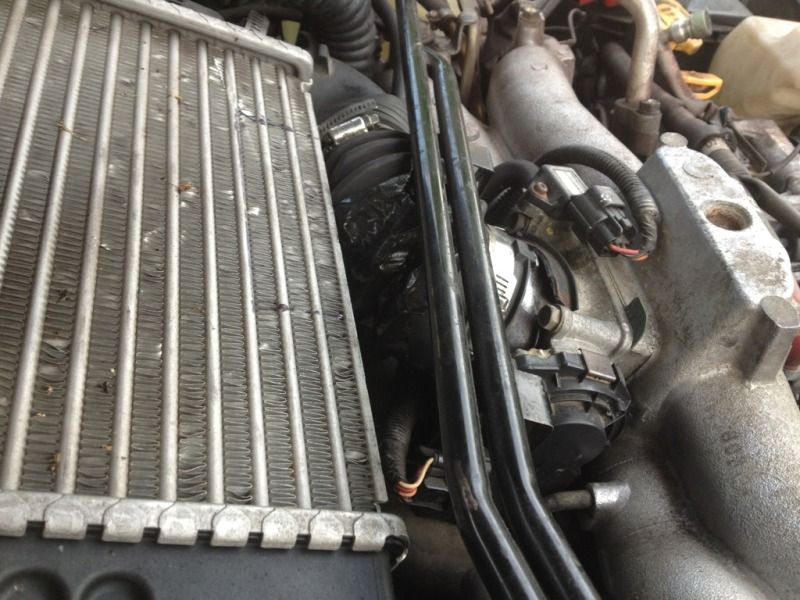

Gotta love this "fix" for a blown turbo

electrical tape eh? Sure why not!

Plans this weekend
-New Rotors & Pads (HPS & Centric)
-transfer wrx struts and springs from my current forester to this one
-Clean Clean Clean
-Change timing belt, pulleys & water pump
-assess intercooler/turbo situation

See less See more

Joshua

Discussion Starter · #3 · Jun 13, 2012

2

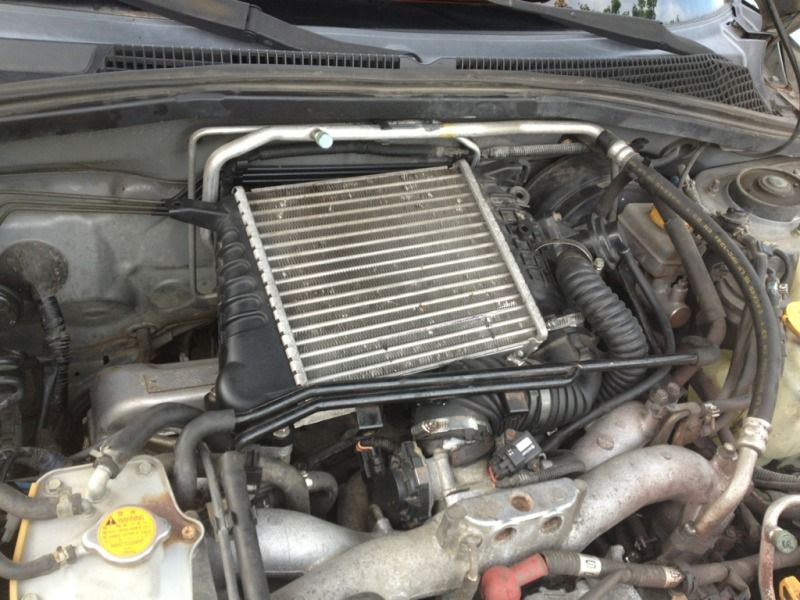

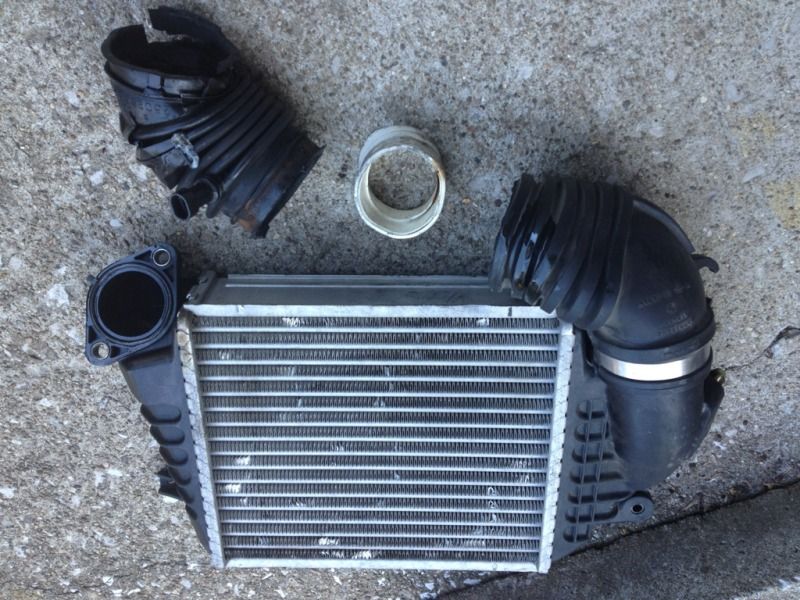

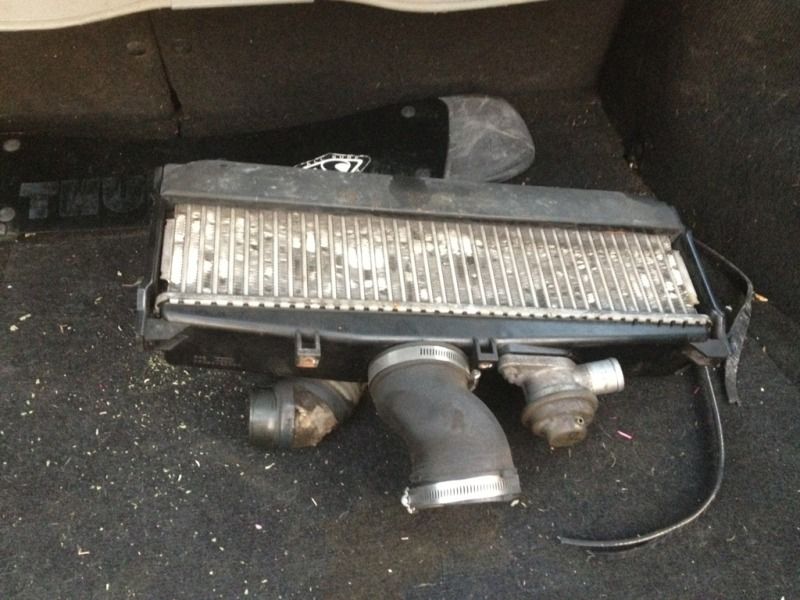

Came with the stock? intercooler although it has the wrong IM coupler on it :unamused:

You can also see the Thule fairing in the back

See less See more

critict1gc

· #4 · Jun 13, 2012

Nice, when did you pick it up? Also why the heck was there a leggy intercooler on that thing? :screwy:

George.of.the.Jungle

· #5 · Jun 13, 2012

love the taped on intake pipe. classy mods right there.

BrysImpreza

· #6 · Jun 13, 2012

Nice pick up, i had an 04 FXT for a while, they're no joke when running well

Joshua

Discussion Starter · #7 · Jun 13, 2012

critict1gc said:
Nice, when did you pick it up? Also why the heck was there a leggy intercooler on that thing? :screwy:

Last night. The original turbo blew (td04) and they replaced it with a vf40 I guess they decided to use the intercooler that came with it instead of making the stock one work...

George of the Jungle said:
love the taped on intake pipe. classy mods right there.

and he wondered why it made no boost.....

George.of.the.Jungle

· #8 · Jun 13, 2012

:facepalm:

BackWoodsBob

· #9 · Jun 13, 2012

sub'd

Joshua

Discussion Starter · #10 · Jun 14, 2012

3

and.. here we go..

Yes that pvc couple is melted

Super fucking :unamused:

My plan is to put a new SB in, I just dont really have to cash to do it right away. I think I will pull the heads off this weekend and send them off to get checked, cleaned, decked and have new valve seals put in. Hopefully the block looks ok enough to last me a little while. Judging by the metal in the intercooler its a pretty safe bet the turbo is toast. So the next question is which turbo to put in. I have a VF23 here that is in great condition or do I just pick up a cheap TD04 and keep it stock. or????

See less See more

BackWoodsBob

· #11 · Jun 14, 2012

There is a few TD04's in the FS section for <100$

And I know of a guy who will give one to you for price of shipping that has minimal shaft play.

Joshua

Discussion Starter · #12 · Jun 14, 2012

yeah the most I see them for is $150.. The question becomes do I want to go with a VF39 or the VF23 and end up with more HP and better MPG's. Since the TD is pretty much always in boost. There is a local that will tune the car for me.

BackWoodsBob

· #13 · Jun 14, 2012

<- doesn't know anything specific about turbos.

But george and cory taught me how to read a compressor flow chart so that will change!

Joshua

Discussion Starter · #14 · Jun 15, 2012

3

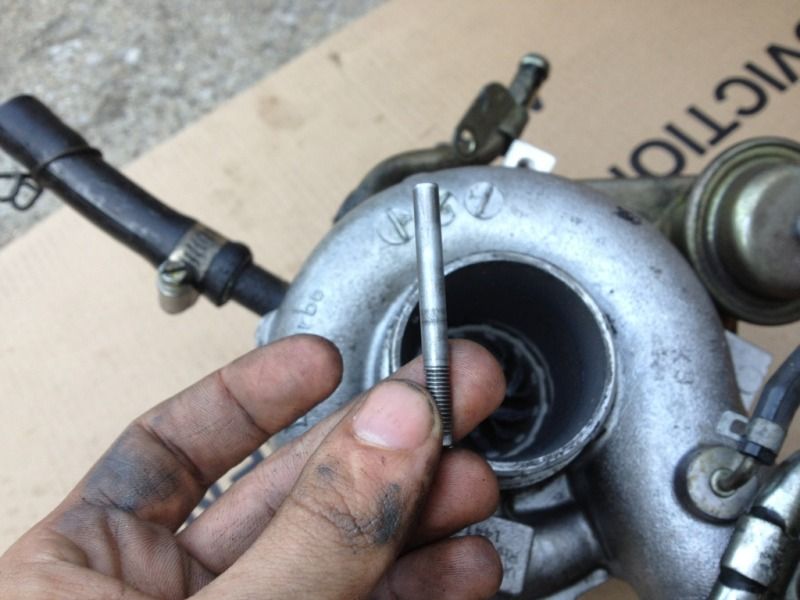

So, obviously the car was having boost issues. After seeing the intercooler setup one would think that was the issue... Well after seeing all the metal in the intercooler I knew the turbo was dead. Well I finally yanked it today.

I look inside and say "hey what is this"

Then I dig a little deeper and pull out one more what appears to be a muffler bearing.........

wonder where all the metal came from??

See less See more

Ayanamieve

· #15 · Jun 15, 2012

Wow...

Mykul

· #16 · Jun 15, 2012

Joshua said:
Then I dig a little deeper and pull out one more what appears to be a muffler bearing.........

At first I was like "the fuck is a muffler bearing?" :wtf:

But then I was like AWWWW YOU GOT ME.

Seriously though, you pulled those out of the intake turbine? The hell are they?

Joshua

Discussion Starter · #17 · Jun 16, 2012

part of the shaft nut for what is left of the turbine

BackWoodsBob

· #18 · Jun 16, 2012

holly shit.

I would at least yank the heads, there HAS to be metal in the engine....

Joshua

Discussion Starter · #19 · Jun 16, 2012

yeah the whole motor is coming out and the heads are going out to be checked and cleaned. All new pulleys, timing belt, water pump, I got the master gasket set so ill replace every seal that I can without splitting the block.

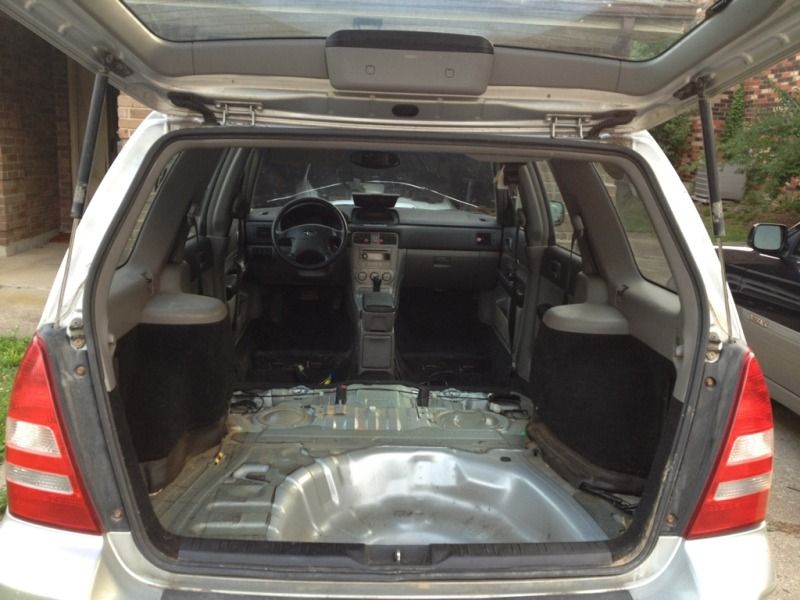

Wife helped me pull and start cleaning the interior. Will take out the consul and carpet and power wash everything. Will also clean all the floor boards.

See less See more

BackWoodsBob

· #20 · Jun 16, 2012

Nice!
