Discussion Starter #1 (Edited)
Spent the better part of today doing this, and noticed there wasn't a lot of information floating out there on undertaking this, let alone a DIY that I could find. So I took some pictures along the way, for anyone else interested.

I did this on my 2.5 SOHC heads on my N/A that I'm refreshing. It may or may not work for other applications, and this is not an FSM. Just a guide with some photos for whom it may help.

First, remove your head(s) (which involves removing the valve cover), from there, remove the 10/12mm bolts directly top and center holding on the rockers and remove the rocker assemblies. If you need pictures for that step, you probably shouldn't be attempting to remove your own valves.

From there, you will need a scribe or two, some pliers, a valve spring compressor, some clean rags, lapping compound (metal polishing compound works in a pinch if your valve seats are in good shape) and optionally; a lapping tool or drill (if you're so inclined), a magnet and a c-clamp. I strongly suggest having it all. Also, work somewhere very well lit.



I used a crappy harbor freight valve spring compressor, that I then had to modify. I crushed in the jaws in a vice and made them narrower for better clearance, and replaced the inner stop with a 12mm 1/4 drive shortwell socket that I cut a side off to allow the removal/installation of the valve spring retainer locks. This allowed me to squeeze everything tight enough to not need to remove the camshaft cap on the head.

Starting point:



Install spring tool and clamp jaws if necessary to properly seat the teeth of the jaws, or to hold them there:



Drive the tool down and compress the spring:



Fish out the spring retainer locks, I suggest you hold a scribe to a strong magnet for a minute to magnetize it, so when you pop them in out out you can take them out without dropping them in the head, or when you do the latter, you can fish them back out with ease:



You can use the scribe to pop the valve out and turn over the head to completely remove it:


Remove spring tool (I keep it attached to the spring), you should see something like this:



Remove old seal:



Clean valve guide stem off with a clean rag:



Install new seal. This can be tricky to seat if you unsure. Push it down so it's even all around. If you look between the stem you just pushed it down on and the inside of the seal, there should be a "gap." This is normal, as long is the stem is flush against the seal's inner lip. It's pretty much impossible to photograph that point-here's my best attempt:



Intake valve seat after roughly 175K:



Use some elbow grease and take off what you can with a non-abrasive pad ( used a knock off, softer brillo pad) :


Here is the valve, note the very minor pitting:


Clean it up and apply your compound. Slide the valve back through the guide, and lapp the valve using a spinning motion and a slight pressure against the seat. Now, there are many schools of thought on this, so you can choose your own way. I suggest if you haven't done it before you use youtube to get some good ideas on various techniques.

This is what it looks like when done, and cleaned off very thoroughly. It should be an even, smooth, dull grey (just that thin ring, that's the valve seat):

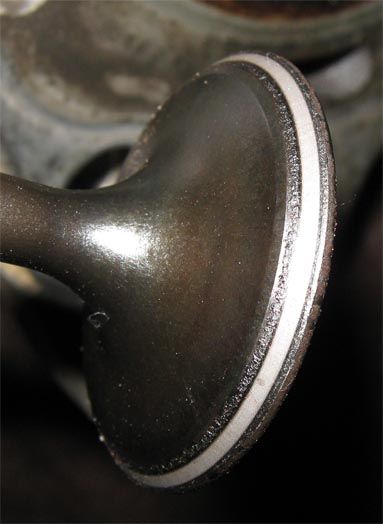

Valve completed:



Now, pretty much the reverse order: Seat the valve through the guide. Install spring with retainer. Install spring tool. Recompress spring. (or simply place the still compressed spring in tool back into place). pop the retainer locks back in (perhaps the worst part - Have patience.) You might have to hold the valve against the seat flush, rotate or push down on the spring tool, or rotate the first retainer lock you get in just to get them both in place and seated. They should both catch their respective lips and look like this:



:noes:Slowly release and remove the spring tool making sure you don't jar out a retainer lock before it's all seated. It should look like this, exactly like when you started:



Admire the work just did despite not being able to see it, take a deep breath, and repeat this process 15 more times, and you're done!! :bonk:


·
Registered
2000 BRP 3.3RS
Joined
·
1,073 Posts
Discussion Starter #7
Yes, It was one of the most tedious things I've done to the car in memory...and that's saying a lot. Each valve took about half of an hour. So I'd set up a comfortable work area and put aside a whole day for it. I'm pretty sure I went through the whole Rocky saga in the background and after that put on Mad Max 2, haha.

Also, Mykul, you're welcome too.

Just glad I didn't waste my time writing it and taking pictures!


·
Registered
2002 OBS / 2008 FXT
Joined
·
387 Posts
Pretty good write up, one point I will add as an emphasis, don't get lapping compound in your seals and clean it off thoroughly. You don't want any of that abrasive left behind.

Sent from my DROID RAZR HD using Tapatalk


·
Registered
2000 EJ257 Swapped RS
Joined
·
548 Posts
Solid write up and nice pics. I feel like the hardest part is the spring compressor tool....I modified the crap out of a Sears one to make it work. Once you get in a rhythm of getting the spring retainers in or out you gotta stick with it.

One little tip I've found and I know some others on here know it....a deep well 10mm socket fits perfectly on the valve stem seals. Just use hand pressure and give it nice even push on the back side of the socket and you feel them "pop" into place.....(that whole sentence sounded dirty).

As far as the valve lapping goes, you would catch all sorts of flack from the "modern heads need/have a 3 or 5 angle valve cut" folks that say using compound and doing it the way you did is dumb. I agree with them to an extent but I think lapping in valves is still a viable option depending on the circumstances. I've done plenty of lapping on Subaru heads to know it works and works well.

Nice post man. Very informative.


·
Registered
2000 EJ257 Swapped RS
Joined
·
548 Posts
I'm doing this shortly. Anyone know how much this cleans up the valve seats?
My exhaust valves were so clogged with carbon they were not seating and there is some slight pitting on the valve seats.

Not sure if I should lap it out, replace them, or have machine shop clean them up...

Thanks!
Bill
Bill,

Sounds like you are asking if you can save the seats? It's hard to say but my advice is:

You can definitely clean up the valve seats to an extent but if they are effed up there is nothing you can do besides machine shop work. I have made some slight pitting disappear by lapping valves but I don't know what yours look like.

I personally would buy new valves. Lap them in and throw some new seals on and away you go. You may lose a few hp or a few mpg vs. someone who went and got the heads machined to accept new valves, but its a 16 year old car at this point and a valve lapping is most likely going to be all you need to keep the car running for the foreseeable future. You aren't building a 450whp monster I assume.

PM me if you have any questions on anything you need to do.

-Jake


·
Registered
95/99 Brighton STi
Joined
·
2,945 Posts
Will valve lapping change valve lash enough to require re-shimming? I have shim-under-bucket heads.
