JAN 03 2k10
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
<object width="425" height="344"><param name="movie" value="http://www.youtube.com/v/2NWvfhHLHs8&hl=en&fs=1&"></param><param name="allowFullScreen" value="true"></param><param name="allowscriptaccess" value="always"></param><embed src="http://www.youtube.com/v/2NWvfhHLHs8&hl=en&fs=1&" type="application/x-shockwave-flash" allowscriptaccess="always" allowfullscreen="true" width="425" height="344"></embed></object>
Turning the key in less than 2 hrs
aug 2009
, wiring is getting done soon

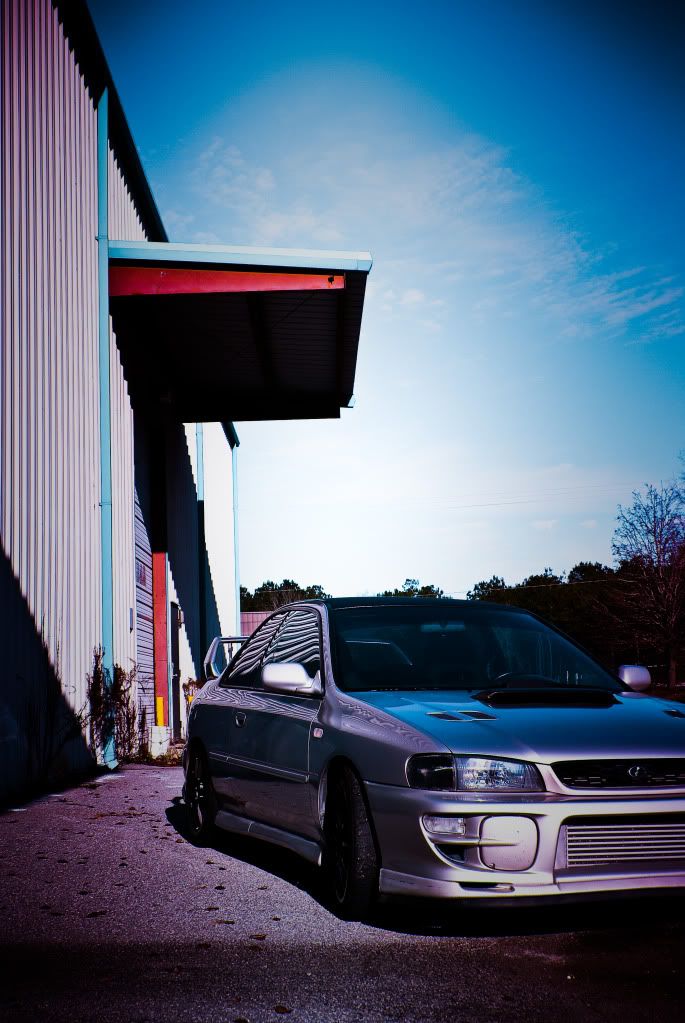

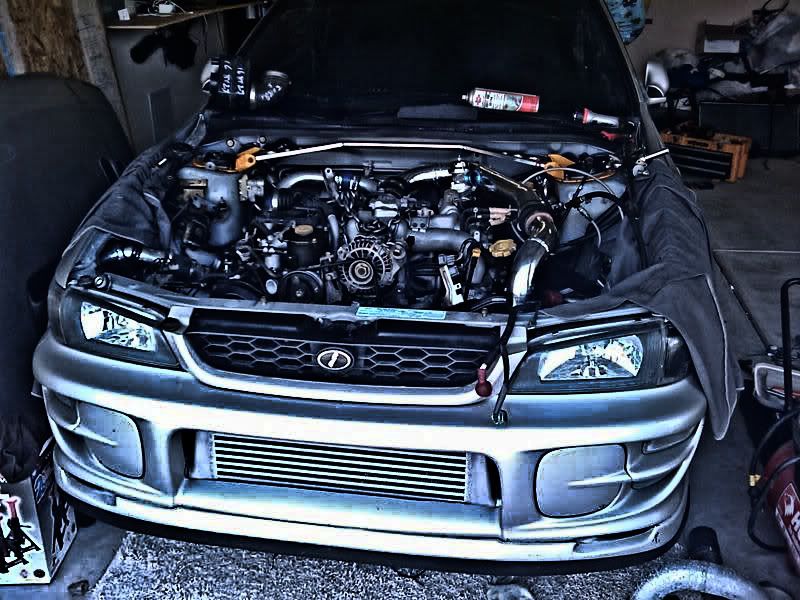

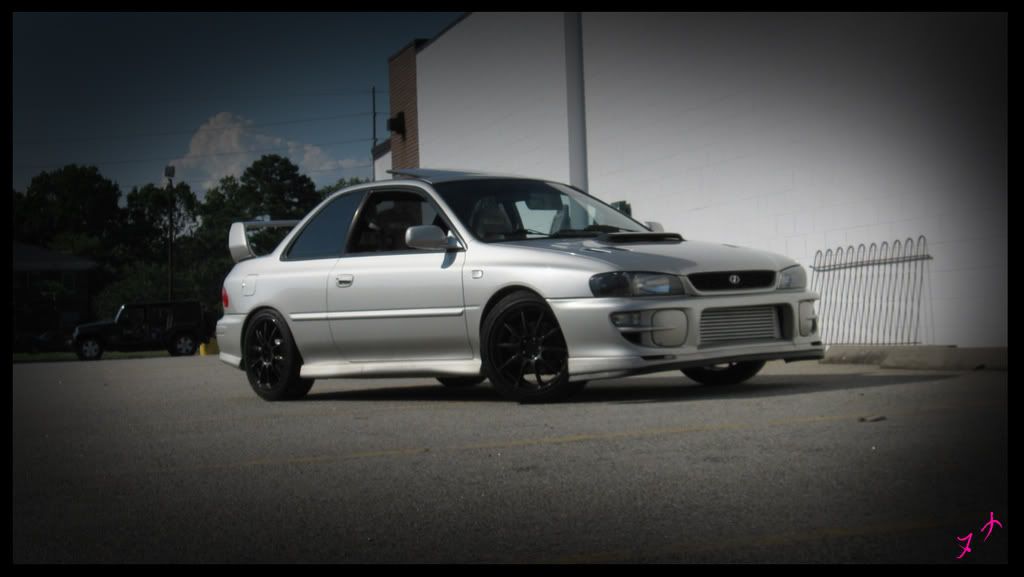

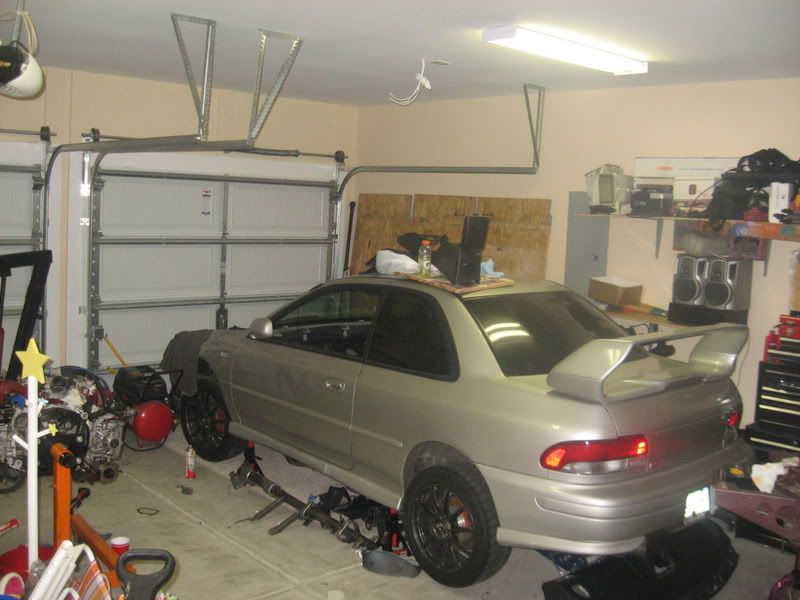

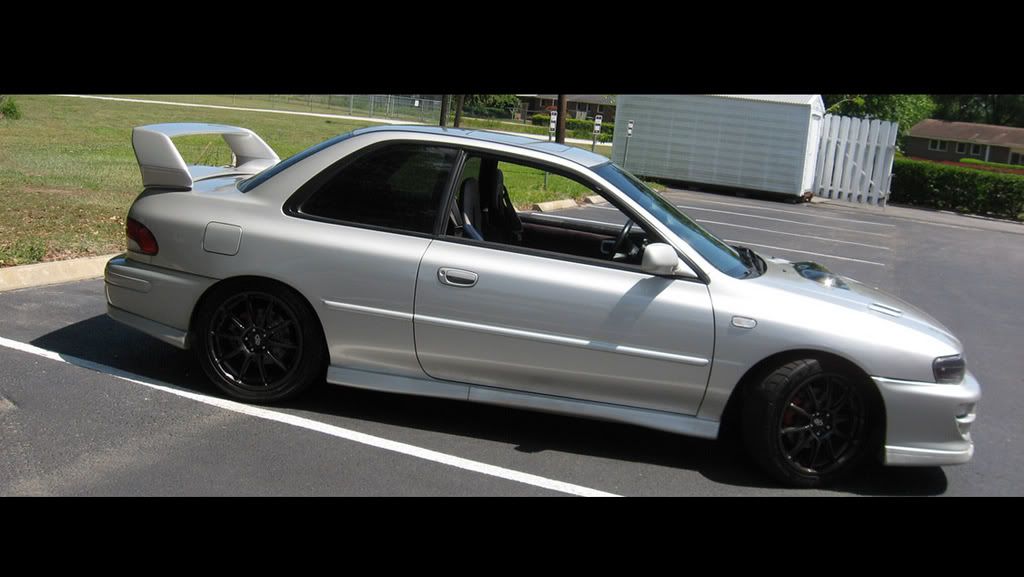

this is how she sits now
![]()
swapped the rs p/s pump from old motor to ej20g
had to order a oil seperator plate,fuji bond and rear crank seal for the 20g
valve cover gaskets i did a few weeks ago. not doing timing belt as it was done 6000 miles ago acording to the pimp ass jdm timing belt sticker ha
then ordering the r1819 koyo radiator,took the jdm tranny off the 20g motor, the clutch was fuxored hot spots flyheel looked ruff, doesnt matter as im using the rs tranny with it, wanted the shorter first and second gears. reusing my exedy racing clutch with the swapzorrs
thanks again
BUMP 2009 Update:
swap progress update may 7 09

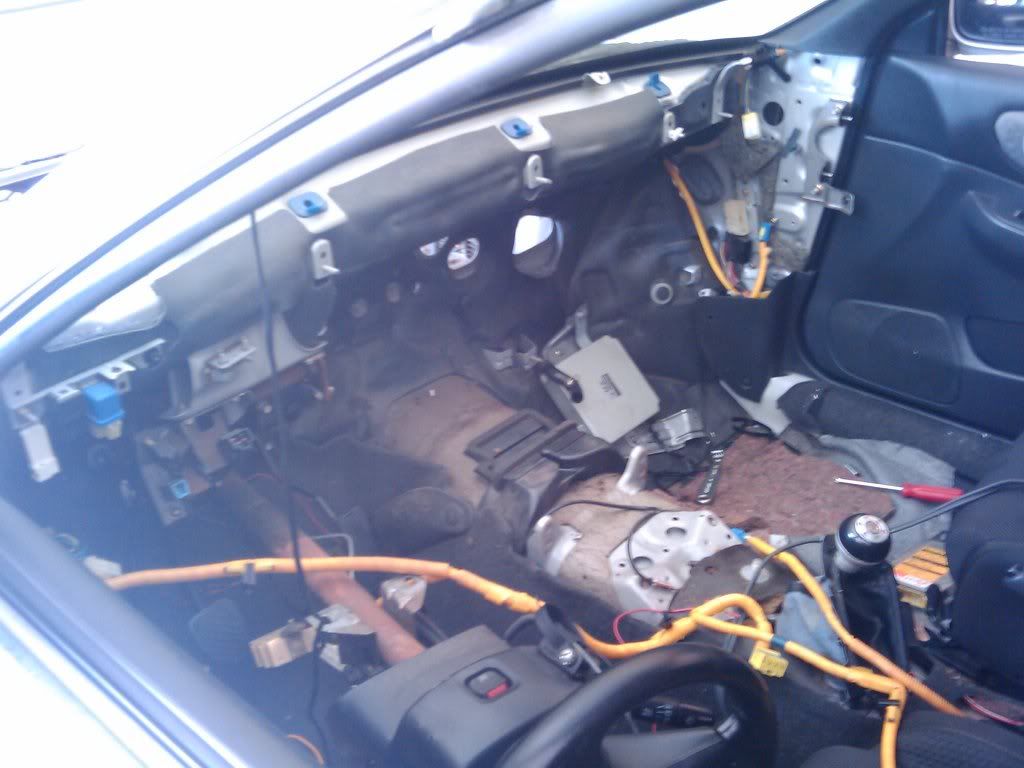

harness is out and getting sent to iwire will be dropping the motor in this weekend
and firing it up once the harness gets back here are a few pics
![]()

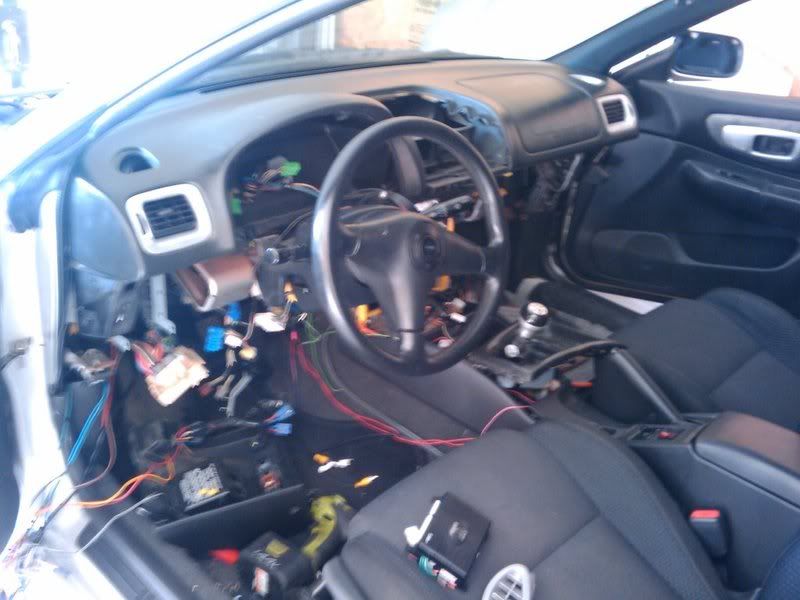

OMG where the phuk did everything go
![]()

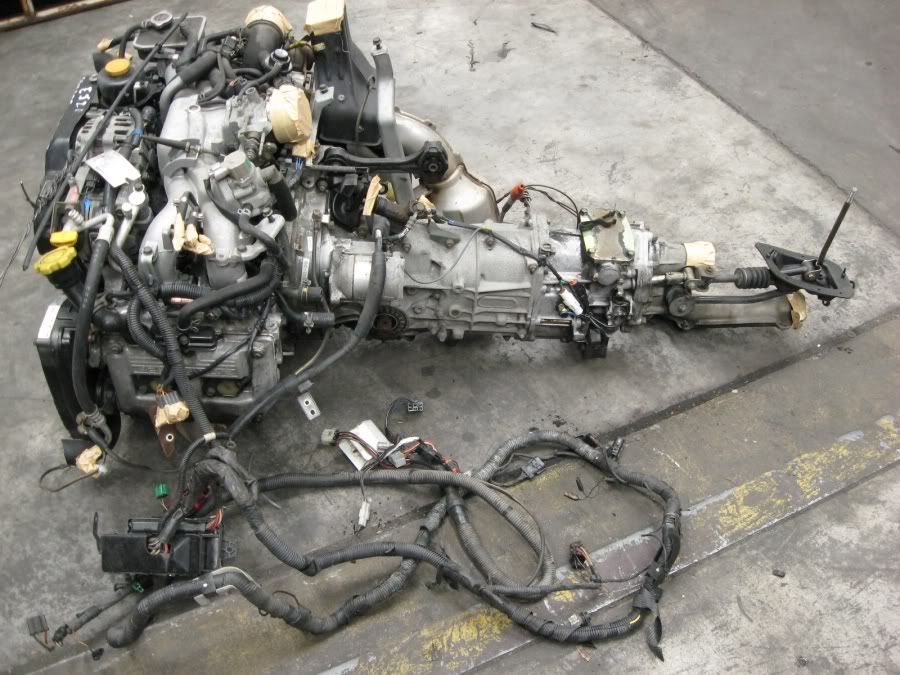

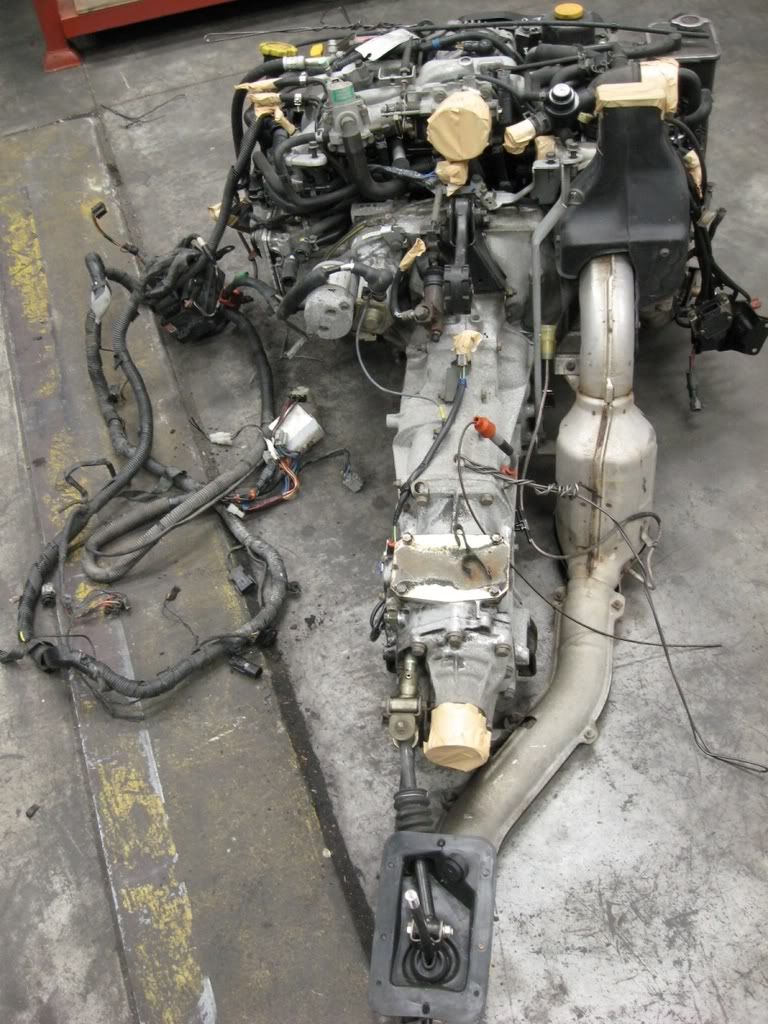

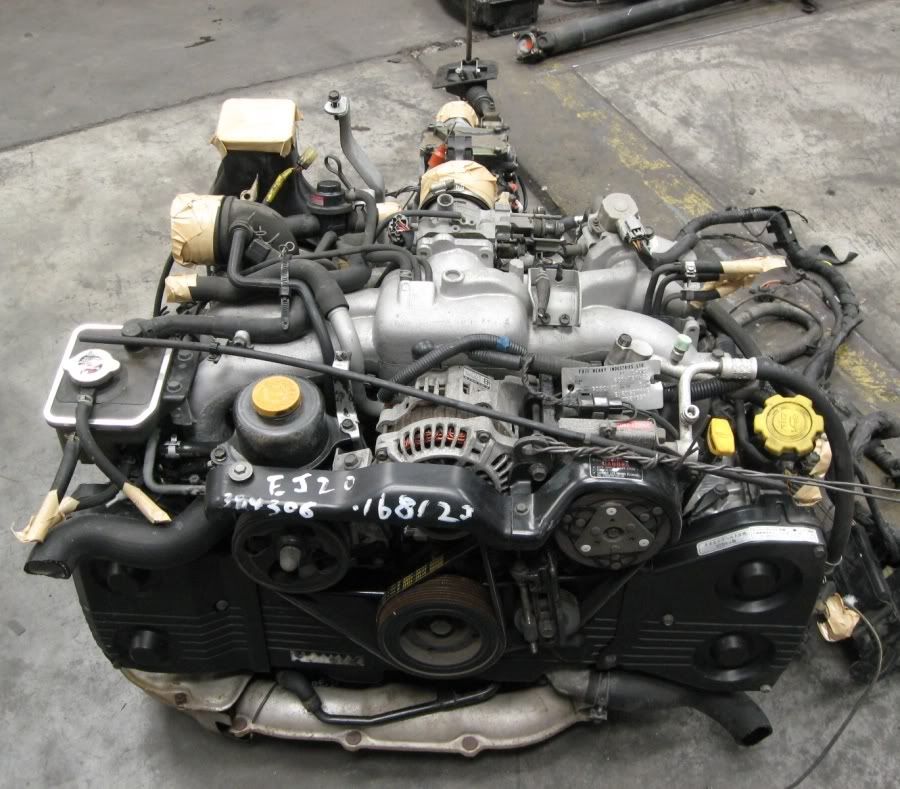

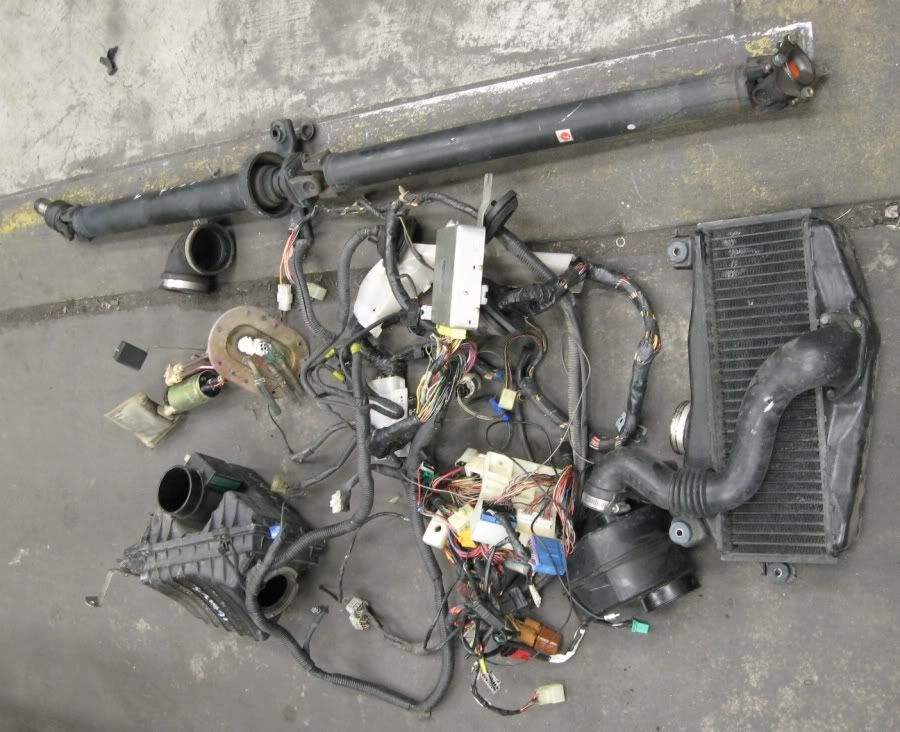

I have sold the link ecu, j&s safeguard, and just got this EJ20g swap

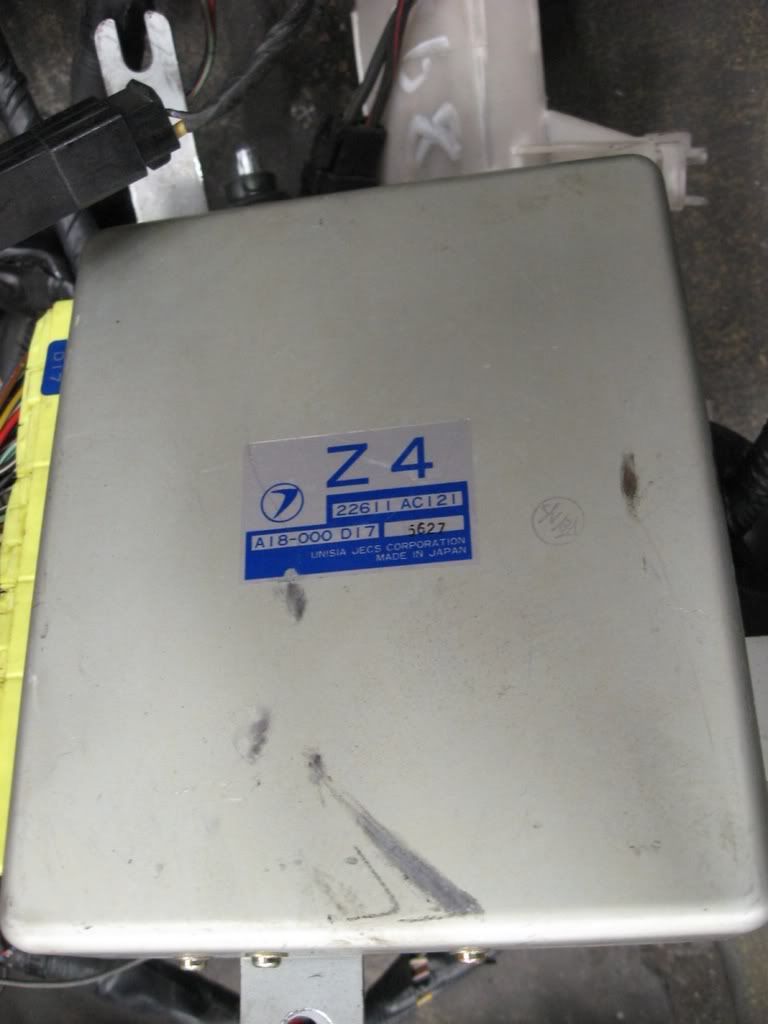

EJ20G z4 ecu tdo5 16g turbo should b fun
Right now im cruising around on the stock injectors and ecu then pulling the motor and trans, i will be selling the ej20g trans and running it with my rs gearbox here are a few pics
![]()
![]()
![]()
![]()
![]()
I will be running this on the z4 ecu atleast for a little while while i run the motor and make sure its not going to grenade, then i will be stepping up to a Power Fc and bigger inj
ANYONE HAVE ECU PINOUTS FOR 95 EJ20G
Had a Black 98 4eat back in the day, member 498 on nasioc back in the day, anyways drove the shit out of it for a while and traded it in with 60k on it for what i have now my 2000 2.5rs-t bought it from Jerry Hagen at prestige subaru who founded deadbolt turbos etc
went from this
![]()
![]()
![]()
![]()
![]()
![]()
![]()
went through like 10 diff exhaust setups
stock 2000 rs with stromung exhaust sway bars and a shortshifter
tein stech springs and a few other things
from this back in the day
then one weekend ordered wheels+tires, turbo kit whichhad custom sparco topmount intercooler from rallispec, rhb5 teeny tiny turbo. Went from rrfpr setup to emanage to now a linkplus standalone engine managment suspension brakes seats all kinds of shit car sat for 4 months on jackstands
mods list
Engine:
jdm EJ20g with td05-16g turbo
tial 38mm wastegate with external dumptube
hallman mbc
greddy type-rs bov
Aem wideband controller
autometer boost, egt, and narrowband a/f gauges
walbro 255 fuel pump
custom front mount intercooler
jdm turbo crossmember
cusco catch tank
earls stainless lines and An fittings
suspension:
and transmission
exedy stage 2 clutch
exedy flywheel
rps shortthrow shifter
jdm wrx crossmember
cusco front sway bar
cusco rear sway bar
wrx control arms
syms front and rear strut tower brace
cusco lower arm bar
kyb agx shocks
groundcontrol coilovers
group n topmounts
group n engine mounts
group n trans mount
exhaust:
custom catless uppipe
jdm wrx header
prodrive catless downpipe
prodrive de-cat midpipe
blitznurspec muffler
Interior:

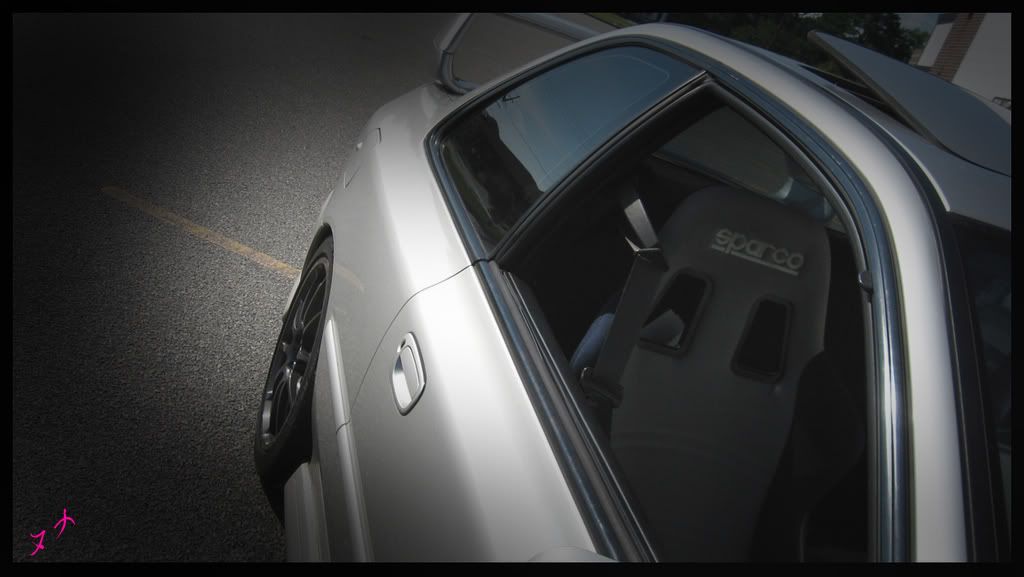

Sparco Speed seats
with custom rails
sti floor mats
jdm momo steering wheel
momo shiftknob
custom carbon fiber overlayed dash trim
flip out dvd player with rearview camera
glovebox mod
gutted rear interior, seats etc
brakes:
slotted and crossdrilled rotors
front/back
akebono brakepads
4pots in front soon
2pot rear
Exterior
carbon fiber hood scoop
Blacked out headlights
sti fog covers
sti front lip
DIY homedepot addon lip
v5 grill
v5 Spoiler
Clear corner lights
i badge
painted sideskirts
rear spats
rota 17" tarmac II..gunmetalic
Falken Azenis 615's
JDM RED/CLEAR TAILS
Mcullock 6000k hid kit
Custom rearview camera mounted in licencse plate
will have engine pics soon
it got into subiesport oct issue 06
![]()
![]()

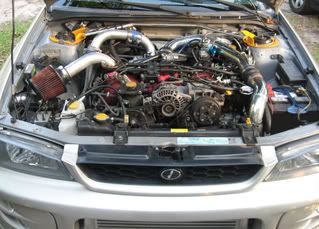

Current 09 engine pic before the swap Front mount is staying
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
will have new pics up toon
comments welcome
Thanks
Greg
