Buurma's 01 WRX *new paint*
Reply

Thread Tools Display Modes
Old 11-27-2011, 10:33 AM   #1
Buurma
3.3L

Fav Mod: WRX
Join Date: Jun 2010
Location: NW. ohio
Trader Rating: (19)
Posts: 738
Default Buurma's 01 WRX *new paint*

hey guys time for my next journal! i used this for myself as a list of stuff i wanted to get done, and since in my searching i didnt see anyone doing specifically what i'm doing i may have a lot of questions along the way.

its going to be short and hard to read but i'll fix it here when i get things moving.

so starting off, i was on my way to PA to check out a 00 stm sedan rs. no body rust, well he sent me pics of the underneath and i gagged. fithy, well we headed up there to check it out anyway. we're rollin down some back woods hill billy town we pass used car dealer, my gf (savior of the year) spotted a black gc! (not really lookin for a coupe) so we turn around. dude! its a sedan, had rusty quarters, they were fixed and primer'd over, i took out the trunk panels and they cut out and fiberglassed in. the rust was only about 2" long and 1" tall i look underneath, its amazing, its almost as clean as my north carolina coupe i just sold! i'm thinking he wants a small mint for this car, asked him how much. half the price of the one i origionally was gonna get. i was sold.




long story short i now have it. they delivered it that day for $100
mind you this place is 5 hours away, 300 miles for all you non-ohians

the engine runs, 182k miles. but she leaks oil from somewhere on the rear.
auto
hood paint is completely trashed
dings/dents
but i dont care:

i bought a whole 2004 wrx wagon a month ago for use in a swap.
right now its gutted out and ready to find its new home

Complete wrx swap + tranny + rear end ...................... COMEPLETE
(dash is NOT HAPPENING https://www.rs25.com/forums/f145/t169...ml#post2669332 )
re-using the whole wrx harness. .............................. . doneeee.
Adapting the RS steering yolk to accept the wrx power steering ......... complete
figure out what throttle cable to use .............................. .. complete
wiring for rear abs .............................. . done
dropping in wrx fuel pump .............................. ... complete
Timing belt .............................. ................ compete
removing under radiator support from wrx cross member. .................. Complete
remove RS cross member and everything attached ..................... complete
finding a wrx wheel (air bags deployed) .............. complete
finding a 5 speed pitch mount bracket .............. done!
swapping the pedal assembly ........................... the wrx pedal assembly DOES NOT BOLT UP
finding a drivers 04-05 wrx seat (mines fubar)...... done
swappping to the wrx's carpet ............................ the carpets arent the same, the wrx one fits way different. i reused the RS one
Steel braided brake lines .............................. .... Complete
rear spats .............................. ......................... done
finding nice wheels .............................. .......... complete
getting a professional paint job .......................... Buurma's 01 WRX *new paint*
painted hood .............................. ...................... complete
making another light bar .............................. ..... complete
Corner lights .............................. ...................... done
Hella lights .............................. ....................... complete
hella horns .............................. ....................... complete
jdm tails......................... .............................. .... complete
jdm flat fuel door.......................... ......................done
jdm version 6 grille .............................. ............ so nice!
06 wrx 4 pot 2 pot setup......................... ........... bambalamb!

Go fast parts!
wrx up pipe .............................. .................. installed
wrx down pipe .............................. .............. installed
wrx 3 " tbe .............................. ................... installed
Invidia-perrin setup.

estimated initial engine start date? 12/25/11
actual engine start date .............. 12/13/11

i havent even took anything apart on the sedan, as of nov 27 2011


Mods
__________________________

Engine/drivetrain:
Complete 2004 wrx wagon engine, tranny, ecu
complete brake setup off the 04 wrx
larger rear sway bar (17mm?)
Steel braided brake lines
intercooler sprayer
FHI carbon strut tower bar
iWire tune + my tweaks
invidia bell mouth downpipe + catless up pipe + perrin cat back.
06 wrx 4 pot 2 pot combo!

Exterior
Wheels: Drag DR-31's 17x7 40mm offset with a 215/45z17 conti extreme contacts!
Coupe wing
JDM grill with pink 'I' badge and my wrx emblem
JDM rear spats
JDM flat fuel door
JDM tail lights
2006 wrx wheels
replica fog light covers
Buurma racing light bar + 2 hella 700's
Hella supertone's

skid plate:
https://www.rs25.com/forums/f145/t169...ml#post2773450


Interior
2005 wrx seats, all 4
2002 wrx MOMO wheel
3x gauge pack with:
autometer boost, AEM wideband, and autometer oil pressure
Subaru all weather floor mats
OEM fog light switch wired up for the hella's (looks and functions like factory)
poineer 6.5" speakers
JVC double din cd player
i used the wagon's wiper stalk and made a functional intercooler sprayer



i have a few pics.

how she sat at the dealer guy's place


loaded it up headed home:


driving, i think i'm missing something?


engine is in!!!!!!!!

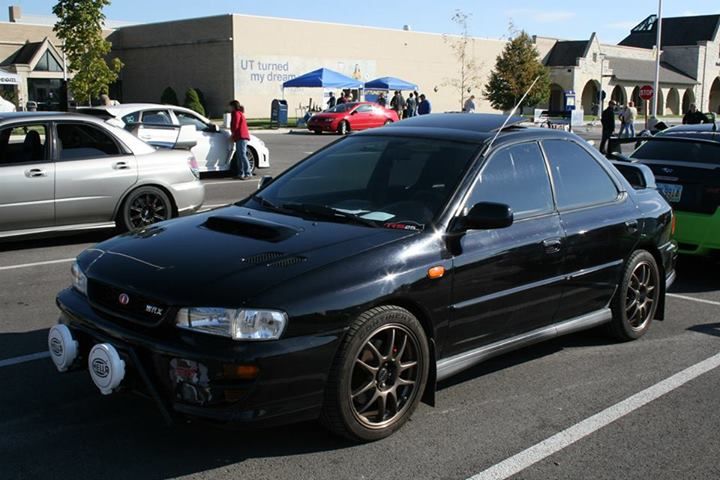

Most Recent pic
Attached Thumbnails
Buurma's 01 WRX *new paint*-0120121028a.jpg
__________________
You can only have two: Cheap, Fast, Reliable

Last edited by Buurma; 10-26-2013 at 05:22 PM..
Buurma is offline   Reply With Quote
Sponsored Links
Advertisement

Old 11-27-2011, 10:34 AM   #2
Buurma
3.3L

Fav Mod: WRX
Join Date: Jun 2010
Location: NW. ohio
Trader Rating: (19)
Posts: 738
Default

i think i will use this post as my speed bump pictures and my fixes

First up is my ac pressure line.
you cant use your oem high side line, the way it is.

the wrx one will fit, only if the other end of the line (the side that goes to the condensor) was flipped over) so my solve is:

VICE
tapped it with a hammer, bent it just a wee bit farther and woohoo fits like it was supposed to


Steering yolk, GC to GD conversion;
Your GC yolk is a very coarse spline compared to the GD one.


the GD one is longer than the GC one



if you've ever changed a universal joint in anything you know how to do this, if you have the GD yolk that is.


i used my vice, and a socket set as my press. i hate hammering things.
pressed the bearing into my socket and pushed on the other side's bearing with a smaller socket.

cleaned em out and put fresh grease in there. pressed em back together and finished product:


on a 02-05 wrx there's a bracket that holds the o2 sensor plugs and the egt sensor plugs, well that doesnt fit, unless of course you make it fit. all you gotta do is twist the lower bolt hole to accomidate your strut tower then bend the one closest to the fender to attach it there. cut off the middle bolt hole and done!



got my pedals in, the wrx ones are different than GC ones. but you can slip the pedal covers off the wrx and slid em onto the gc ones.


one of my favorite inventions, cam gear holding tool. i stripped one of the bolts that holds the cam gear on and i didnt feel like waiting a week to drop me engine in, so i made a tool that holds it so i dont have to pull the valve cover off.



IF you're using the gc's radiator you need to trim down the upper hose. its too long and bunches up unless you trim it.
__________________
You can only have two: Cheap, Fast, Reliable

Last edited by Buurma; 12-08-2011 at 06:40 PM..
Buurma is offline   Reply With Quote
Old 11-27-2011, 10:34 AM   #3
Buurma
3.3L

Fav Mod: WRX
Join Date: Jun 2010
Location: NW. ohio
Trader Rating: (19)
Posts: 738
Default

If you've ever struggled putting an oil pressure sending unit on your car for an aftermarket gauge here's my fix:
take a grease gun hose 1/8npt and relocate the sending unit!

fix a ground wire to the sending unit, then hook your gauge.


voila!
__________________
You can only have two: Cheap, Fast, Reliable

Last edited by Buurma; 01-03-2012 at 07:49 PM..
Buurma is offline   Reply With Quote
Old 11-27-2011, 10:34 AM   #4
Buurma
3.3L

Fav Mod: WRX
Join Date: Jun 2010
Location: NW. ohio
Trader Rating: (19)
Posts: 738
Default

videos:
first time at the track! got a red light, have no idea why. but i went anyway.
ran a 13.73 at 98 mph:



in car video:
13.80 at 98 mph


i dont konw if this one will embed:
2/19/12:


this is why you get AWD - YouTube

launch control!


stolen from jonny-o thread
Buurma leaves. Triumphantly. - YouTube

little gopro action!


and heck why not one more
__________________
You can only have two: Cheap, Fast, Reliable

Last edited by Buurma; 04-11-2015 at 06:55 AM..
Buurma is offline   Reply With Quote
Old 11-27-2011, 10:35 AM   #5
kaiba
2.2L Turbo

Fav Mod: Stock
Join Date: Dec 2006
Location: Sacramento, CA
Trader Rating: (22)
Posts: 3,756
Default

WOW! See though chassis.
kaiba is offline   Reply With Quote
Old 11-27-2011, 10:35 AM   #6
Buurma
3.3L

Fav Mod: WRX
Join Date: Jun 2010
Location: NW. ohio
Trader Rating: (19)
Posts: 738
Default

images:

__________________
You can only have two: Cheap, Fast, Reliable

Last edited by Buurma; 12-04-2011 at 03:24 PM..
Buurma is offline   Reply With Quote
Old 11-27-2011, 10:36 AM   #7
Buurma
3.3L

Fav Mod: WRX
Join Date: Jun 2010
Location: NW. ohio
Trader Rating: (19)
Posts: 738
Default

Quote:
Originally Posted by kaiba View Post
WOW! See though chassis.
wish i woulda put the intercooler back on before i got that pic!
__________________
You can only have two: Cheap, Fast, Reliable
Buurma is offline   Reply With Quote
Old 11-27-2011, 10:54 AM   #8
dontporget
2.2L

Car: 1999, 2.5Rs, RBP
Fav Mod: 20mm RSB
Join Date: Mar 2011
Location: Ohio CLE
Trader Rating: (1)
Posts: 127
Default

: noiceee
dontporget is offline   Reply With Quote
Old 11-27-2011, 10:57 AM   #9
ipodwinner31
3.3L

Fav Mod: Delta 2000 cams ftw
Join Date: Jul 2011
Location: Berne NY
Trader Rating: (3)
Posts: 651
Default

holy rear camber batman! this should be a cool build. subscribed
ipodwinner31 is offline   Reply With Quote
Old 11-27-2011, 11:03 AM   #10
mikeydrives1
2.0L

Car: 01 SF-sti
Fav Mod: 38mm EWG
Join Date: Oct 2011
Location: Tri-state area
Trader Rating: (0)
Posts: 64
Default

Nice!
__________________
2001 Forester STi
mikeydrives1 is offline   Reply With Quote
