DIY: Disassemble & Paint '97-'01 Impreza headlights
Reply

Thread Tools Display Modes
Old 06-26-2007, 07:20 PM   #1
dSpec
3.3L

Fav Mod: Borla UEL Single Ports
Join Date: Jun 2005
Location: SF Bay Area
Trader Rating: (10)
Posts: 721
Default DIY: Disassemble & Paint '99-'01 Impreza headlights

First off, I don't know if the '97 lights follow these same steps since they're not "clear" or multi reflective. If not, ignore it.

DISCLAIMER: I am not responsible for anything that goes wrong. Remember to follow directions closely. Any damage done to your car is your fault!

The purpose of this tutorial is to paint the headlight insert to whichever color you want. The most common color is black, which is what I'm gonna do.

You will need the following items:
- 10mm socket ratchet or wrench
- Flat head screwdriver
- Phillips head screwdriver
- An oven
- Baking tray
- Oven mitts
- Silicone (if needed)

Step 1: Removing the grille.

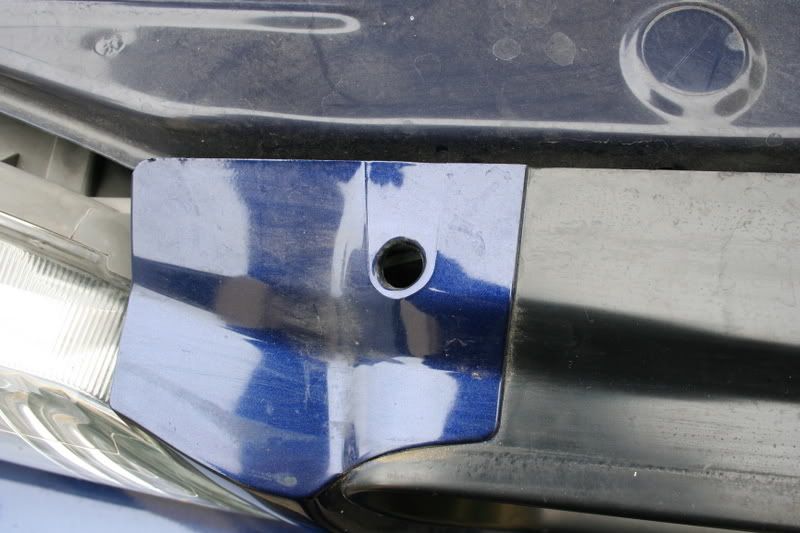

Open hood and remove the grille. This is very simple to do. There is one hole on each side of the grille and has a tab inside. You will need to stick a flathead into these holes. First, push then pull the grille out. Repeat for other side.

Left:

Right:


Step 2: Removing the headlights and corners.
Take the 10mm ratchet and take off the two nuts that are visible.


Then unscrew the screw with a phillips head screwdriver.


Pull out the corner, being careful not to break the tab on top. Take out the bulb /wire by twisting then pulling. After you pull out the corners, you will see 2 more 10mm nuts. Take these off with the ratchet. Take out the wiring for the headlights by pressing both sides of the rubber wiring assembly and pulling out.
Repeat for other side.

Step 3: Taking apart the headlights.
Preheat oven to 220-230 degrees Fahrenheit. Take a headlight and take off the (4) metal clips that secure the glass from the housing with a flathead. You're not done yet! Take the baking pan and put a baking/cookie sheet on top of it (you can use aluminum foil too). When the oven is done preheating, put the headlight into the pan, and put the whole thing into the oven. Wait 10-15 minutes. After that, take it out (BE CAREFUL!) with some oven mitts on. Carefully pry the glass away from the housing using a flathead. If it doesn't pull out right away, pop it back in the oven for about 5 minutes. The glass should pull away from the housing with ease. This is much easier with another person!
Once the glass has been pulled away, you should be left with this:



Let it cool for 5-10 minutes before you work on it. Remember, it is HOT.

After it has been cooled, it is time to take out the "insert". This is the part you will be painting. To do this, you must remove a small phillips head screw pointed out here:



There are two parts in the back where it holds to the housing itself. Don't worry, just pull it right out. Remember these two parts when re-assembling.

You are ready to paint.

Step 4: Painting.
Before you can paint, remember to sand down the surface using some sandpaper so the paint can stick better. Wash off all the dust, and let the insert dry.

Paint the insert with even layers of paint. You do not want too much on a certain layer or else you will see flooding.

Let the paint dry.



Step 5: Re-assembly.
After the insert has dried, put it back into the housing, remembering to attach those two parts in the housing first, then screwing the little phillips head screw back on.

This part is optional if you feel that you have enough silicone on the housing already.

You can apply more silicone if you feel that there isn't enough for a complete seal. Remember to even out the silicone. It will be easier later on.

Put the glass back on the housing, making sure the tabs line up. Push the assembly together as hard as possible, making sure it is even all around.

Put it back in the oven for about 5-10 minutes. Take it out carefully, then push down again, making sure it is sealed all the way around. Let the assembly cool before doing anything else. When cool, put the 4 metal tabs back on.

Repeat for other side.

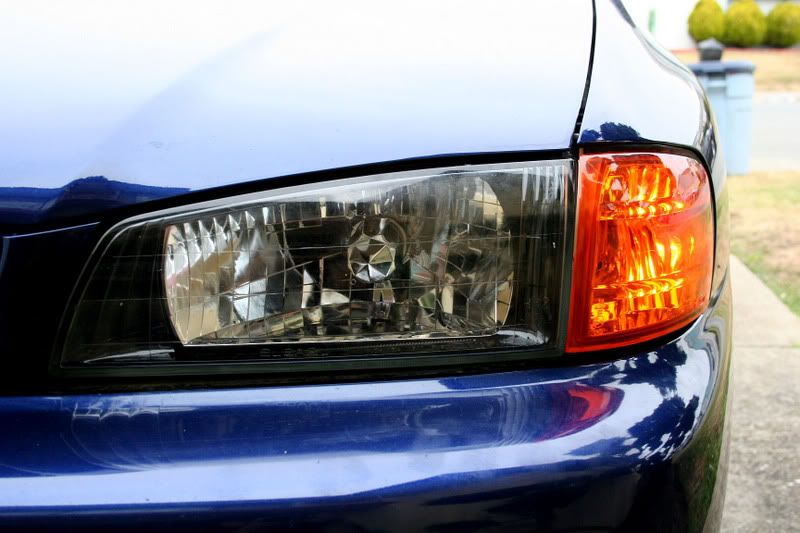

Final results:



Last edited by dSpec; 06-27-2007 at 02:10 PM..
dSpec is offline   Reply With Quote
Sponsored Links
Advertisement

Old 06-26-2007, 07:43 PM   #2
subiemaster
Premium Member

subiemaster's Avatar

Car: 95 impreza L, 05 LGT, 85 aw11
Join Date: Apr 2006
Location: 16803 PA
Trader Rating: (20)
Posts: 304
Default

I love this set up.. amber corners + black headlights +1 for the write up!
subiemaster is offline   Reply With Quote
Old 06-27-2007, 11:33 AM   #3
Switch07
3.3L

Fav Mod: WRX Swap!
Join Date: Jan 2006
Location: Detroit, MI
Trader Rating: (2)
Posts: 624
Default

write up looks awesome! I'll be trying this in the next couple days!
__________________
Design Portfolio | Twitter | WRX Swapped 01 RS
Switch07 is offline   Reply With Quote
Old 06-27-2007, 11:46 AM   #4
Magoozle
Better than you!

Magoozle's Avatar

Car: 1997 LRSWRX, 1998 Lego GT
Fav Mod: Sliced bread
Join Date: Oct 2003
Location: Denver, CO
Trader Rating: (13)
Posts: 6,298
Default

Might wanna change the title to 99-01 headlights. 98 and older dont have that plastic piece you can take out to paint.
__________________
Dear hybrid owners, for every gallon of gas you save, I'm going to waste three.
Magoozle is offline   Reply With Quote
Old 06-27-2007, 02:18 PM   #5
dSpec
3.3L

Fav Mod: Borla UEL Single Ports
Join Date: Jun 2005
Location: SF Bay Area
Trader Rating: (10)
Posts: 721
Default

Thanks Scooby Goo!
dSpec is offline   Reply With Quote
Old 06-27-2007, 07:20 PM   #6
2slo4u
needs more cowbell

2slo4u's Avatar

Fav Mod: +240wtq
Join Date: Apr 2006
Location: Planet Arrakis
Trader Rating: (41)
Posts: 9,190
Default

I wonder if the oven heating would work on my ebay projector headlamps? The front is plastic, but they do have the metal clips. I need to take them apart and try and change the halo bulbs, they burned out in only a couple of months. Well at least the hids are still going.
__________________
I've got a FEVER, and the only thing that can cure it is more WHP!!!
2slo4u is offline   Reply With Quote
Old 06-27-2007, 09:35 PM   #7
Magoozle
Better than you!

Magoozle's Avatar

Car: 1997 LRSWRX, 1998 Lego GT
Fav Mod: Sliced bread
Join Date: Oct 2003
Location: Denver, CO
Trader Rating: (13)
Posts: 6,298
Default

Got any pics of the entire car dspec? Dont see too many 98/Canadian bumpers on BRP anymore.
__________________
Dear hybrid owners, for every gallon of gas you save, I'm going to waste three.
Magoozle is offline   Reply With Quote
Old 06-27-2007, 09:53 PM   #8
dSpec
3.3L

Fav Mod: Borla UEL Single Ports
Join Date: Jun 2005
Location: SF Bay Area
Trader Rating: (10)
Posts: 721
Default

Quote:
Originally Posted by 2slo4u
I wonder if the oven heating would work on my ebay projector headlamps? The front is plastic, but they do have the metal clips. I need to take them apart and try and change the halo bulbs, they burned out in only a couple of months. Well at least the hids are still going.
It should work if they are assembled like the OEM lights, which is most likely. I'd try at a lower temp (around 200 F) just in case the material is different than the OEM ones.
dSpec is offline   Reply With Quote
Old 06-27-2007, 09:55 PM   #9
dSpec
3.3L

Fav Mod: Borla UEL Single Ports
Join Date: Jun 2005
Location: SF Bay Area
Trader Rating: (10)
Posts: 721
Default

Quote:
Originally Posted by Scooby Goo
Got any pics of the entire car dspec? Dont see too many 98/Canadian bumpers on BRP anymore.
You sure you want pics? Heh, the car is just an L with wheel covers. I'll take some new pics tomorrow.
dSpec is offline   Reply With Quote
Old 07-02-2007, 05:56 PM   #10
the ghoul
2.5L

Car: 2000, subaru, impreza 2.5rs, s
Join Date: Jun 2007
Trader Rating: (2)
Posts: 234
Default

LOL,
seems great minds think alike, and Im a tool for not searching before posting
http://www.rs25.com/forums/showthrea...11#post1146811
very good job on the write up!!
the ghoul is offline   Reply With Quote
